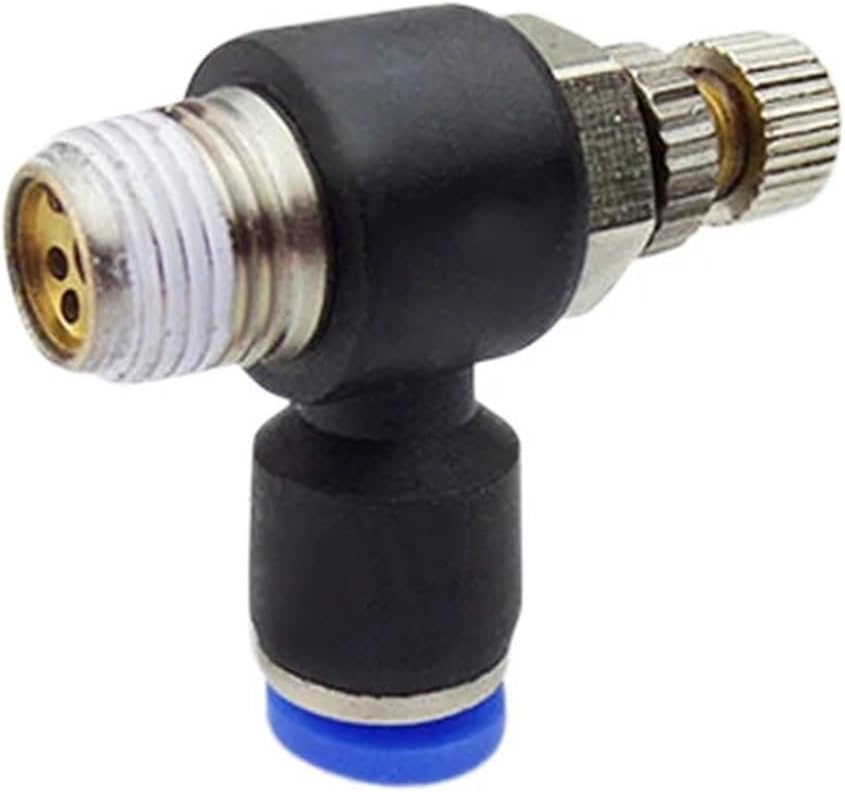

Push-On Fittings
The use of speed control valve:
1. It is forbidden to use tools other than hands to turn the adjusting cap. When the adjusting cap is in the upper/lower limit position, no extra external force shall be applied to it, otherwise the valve body may be damaged and air leakage may occur;
2. When the speed control valve is closed, partial air leakage is allowed. Therefore, it is not recommended to use the speed control valve for occasions where internal leakage is strictly prohibited.
==========
Type : Fittings
Model Number : SL4-M5 SL4-01 SL4-02 SL6-M5 SL6-01 SL6-02 SL8-01 SL8-02
Working medium: : Air ,vacuum
Max.operating pressure: : 1.32Mpa
Normal opereating pressure: : 0~1.0Mpa
Material: : Plastic ,brass ,NBR
Applicable tube: : PU hose ,Nylon pipe
Joint pipe size: : 4mm, 6mm, 8mm, 10mm, 12mm
Thread: : 1/8", 1/4", 3/8", 1/2"
