Automotive Belt Tension Tester, Belt Tension Gauge with Max Range 750N/77Kgf/120lbf, 3 Unit and 3 Testing Modes, Customizable Peak Holding Time for Metal Wire, Plastic Film, Paper in Saudi Arabia Automotive Belt Tension Tester, Belt Tension Gauge with Max Range 750N/77Kgf/120lbf, 3 Unit and 3 Testing Modes, Customizable Peak Holding Time for Metal Wire, Plastic Film, Paper in Saudi Arabia Automotive Belt Tension Tester, Belt Tension Gauge with Max Range 750N/77Kgf/120lbf, 3 Unit and 3 Testing Modes, Customizable Peak Holding Time for Metal Wire, Plastic Film, Paper in Saudi Arabia Automotive Belt Tension Tester, Belt Tension Gauge with Max Range 750N/77Kgf/120lbf, 3 Unit and 3 Testing Modes, Customizable Peak Holding Time for Metal Wire, Plastic Film, Paper in Saudi Arabia

Automotive Belt Tension Tester, Belt Tension Gauge with Max Range 750N/77Kgf/120lbf, 3 Unit and 3 Testing Modes, Customizable Peak Holding Time for Metal Wire, Plastic Film, Paper

SAR 2,742
– 1 +

Special Features

  • 【Customizable Peak Holding Time】Set the peak holding time from 0 to 99 seconds and adjust the gravity acceleration value. Features an automatic shutdown option with a timer adjustable from 0 to 99 minutes, along with intelligent charging for added convenience.
  • 【Clear Dot Matrix Lcd Display】Features a green backlight, with interchangeable units of measurement (N, kgf, lbf), capable of storing 200 sets of test data while automatically calculating averages, maximums, and minimums.
  • 【Versatile Testing Modes】Offers real-time tracking, peak holding, and first peak modes. Easily set upper and lower limit comparison values for data validation, complete with audible alerts and level signal output.

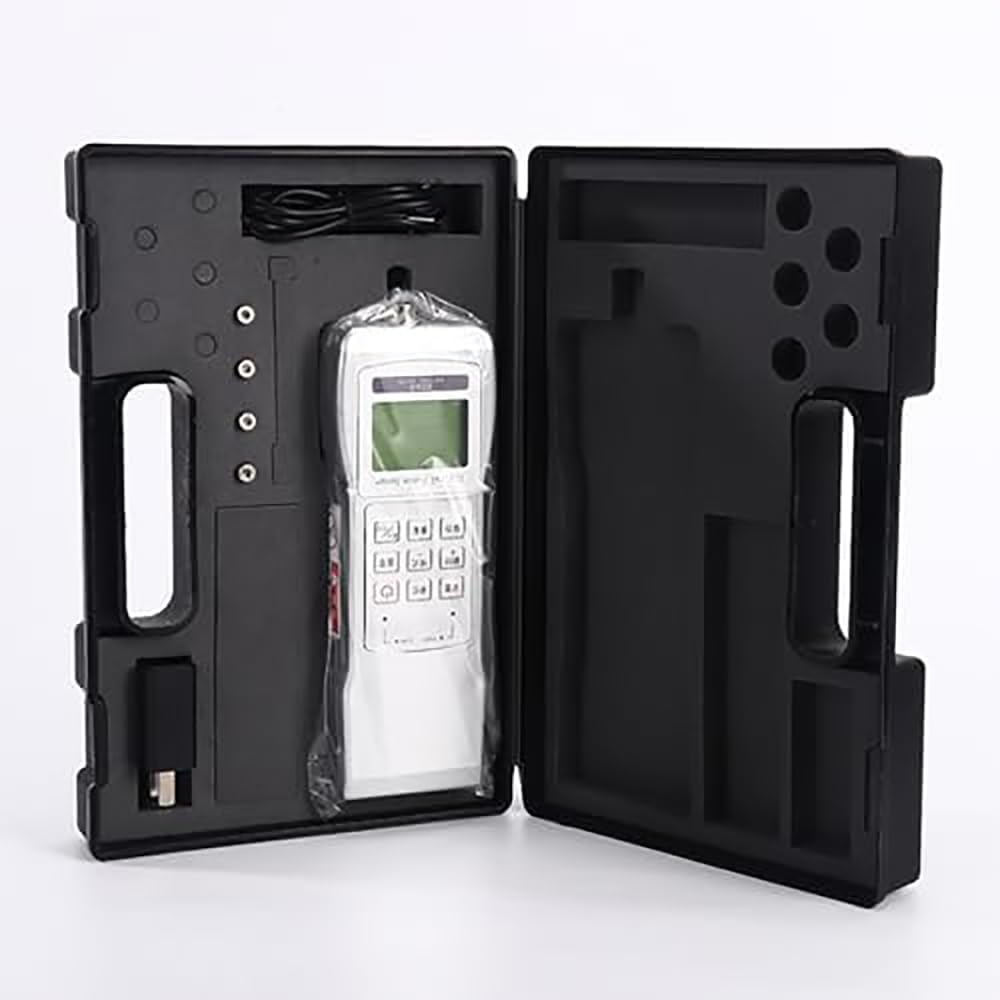

  • 【Portable Design】Comes with a specialized tool case featuring EVA shockproof padding for safe transport and storage, ideal for measuring tension in belts, wires, lines, mesh, and larger objects.
  • 【Wide Range of Applications】Perfect for measuring static tension in various types of belts, including synchronous belts, V-belts, toothed belts, and power transmission belts. Suitable for use across industries such as automotive, textiles, chemical fibers, wire and cable, metal wires, plastic films, paper production, and printing.

Description

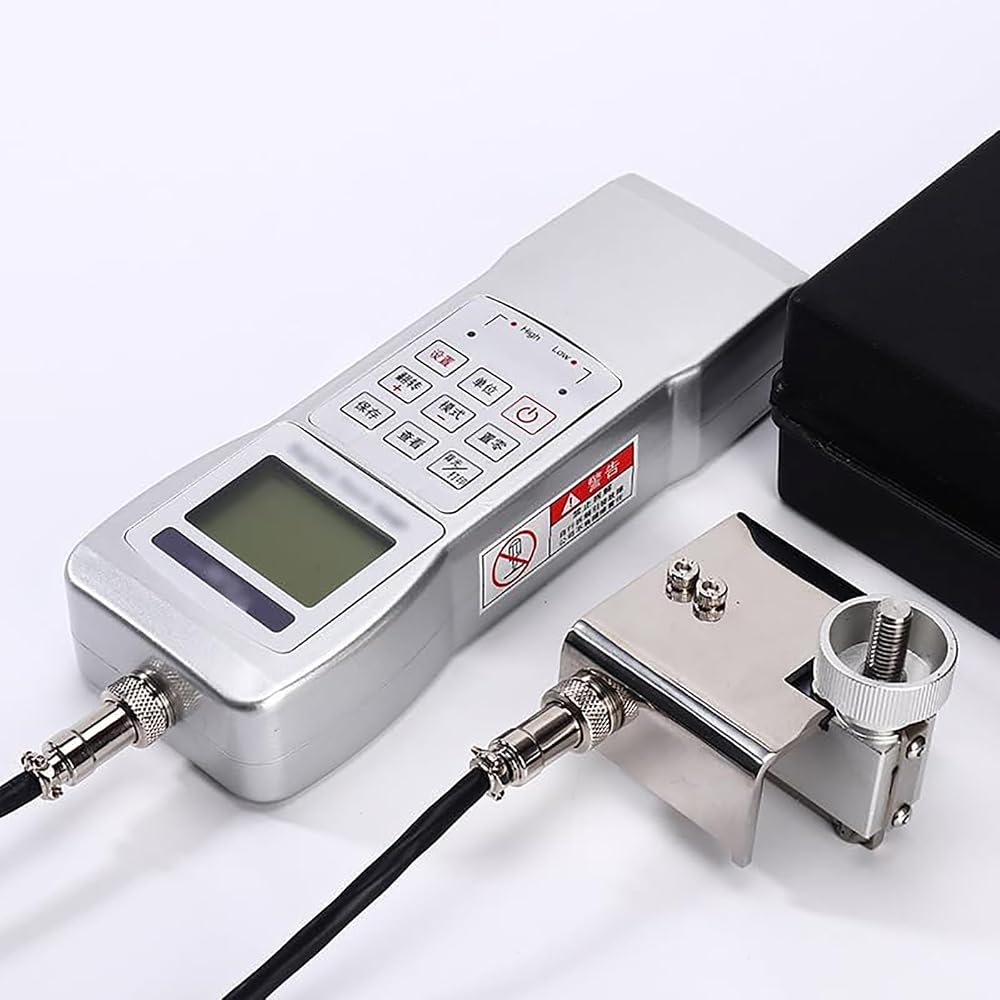

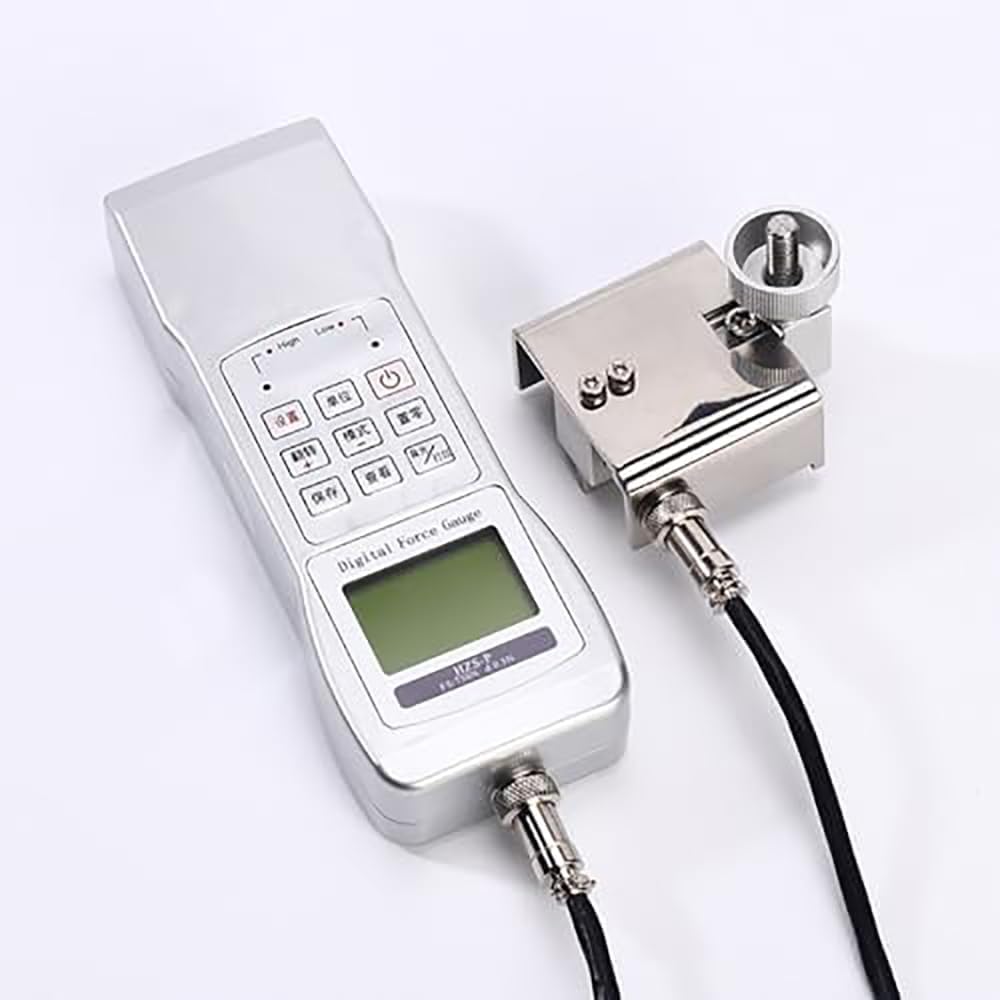

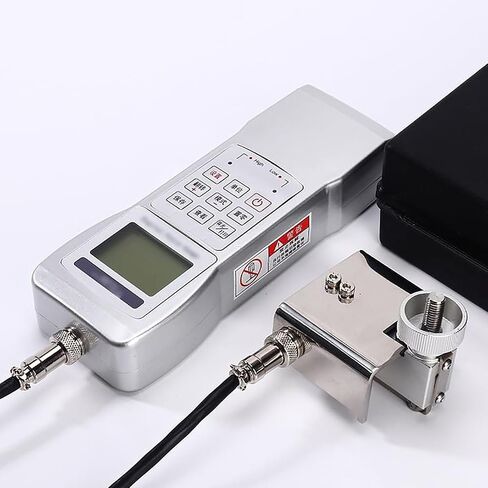

The belt tension meter is used to measure the static tension of various belts such as synchronous belts, V-belts, toothed belts, and power transmission belts on machines and engines. It can also be used to measure the tension data of band-like, filament-like, linear, net-like and wide-width objects for detection and adjustment.

Specifications:
- Product Name: Belt Tension Meter
- Maximum Range: 750N / 77Kgf / 120lbf
- Resolution: 0.5N / 0.05Kgf / 0.1lbf
- Relative Error of Indication: ≤ +5%
- Required Belt Width: ≤ 50mm
- Required Belt Thickness: ≤ 10mm
- Measurement Units: 3 unit conversions (N, Kgf, lbf)
- Power Supply: Lithium battery, 3.7V/1000mAh
- Charger Specifications: AC input 220V/50Hz, DC output 5V/1A
- Working Temperature: 0℃ to 40℃
- Storage Temperature: -20℃ to 70℃
- Relative Humidity: 15% to 80%
Instrument Dimensions: 208mm x 70mm x 41mm
Sensor Dimensions: 60mm x 76mm x 78mm

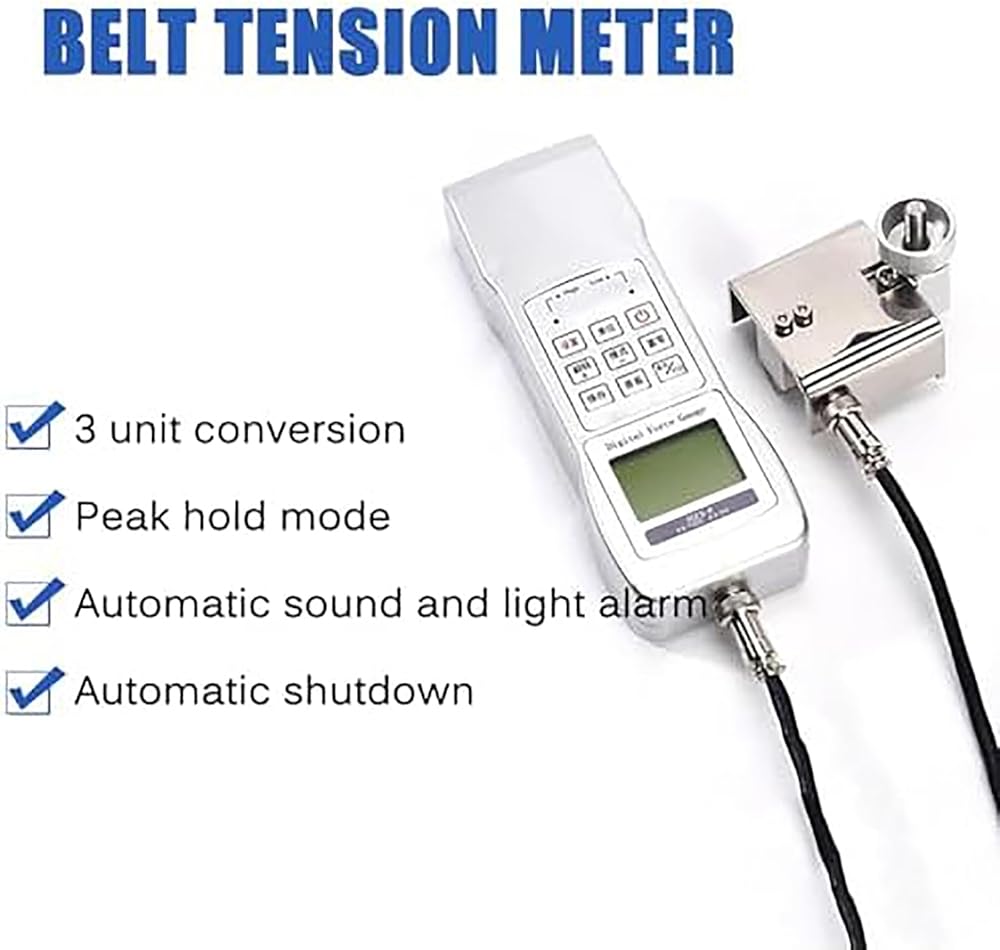

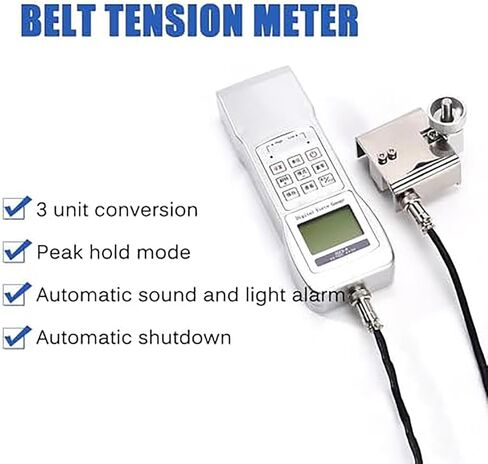

- Features: Peak hold mode, automatic sound and light alarm, automatic shutdown
- Net Weight: Approximately 600g

Package Includes:
- Host x 1
