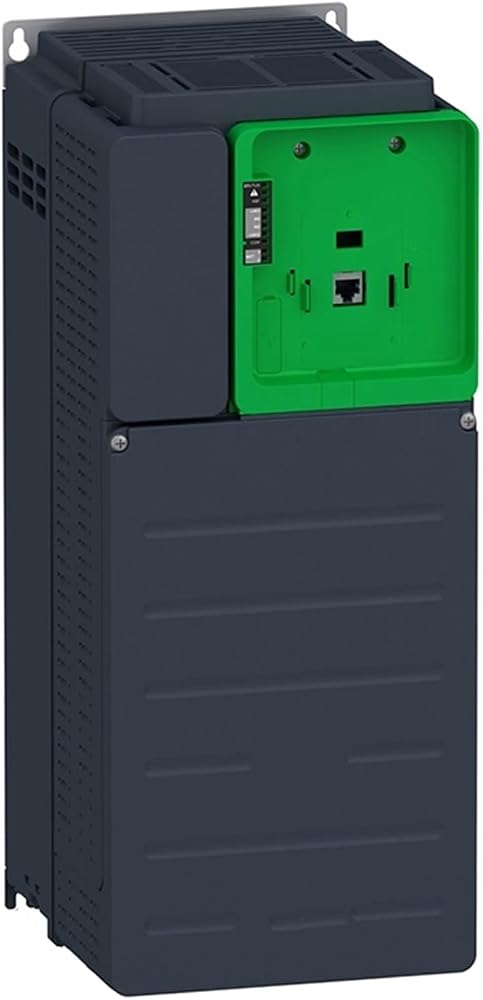

Product Description:
Product series: ATV ATV900
Product application: Industrial use
Product type: Frequency converter
Product application scenarios:
Asynchronous motor
machine
Application area: Process for industrial
Variable:
Brake unit
Standard version
Number of network phases: 3 phases
Installation type: cabinet mounted
Communication port protocol:
Ethernet Modbus
Ethernet/IP
Modbus serial
Rated power supply voltage [Us]: 380... 480 V -15... 10%
Motor power (kW):
18.5 kW applicable standard load
15.0 kW suitable for heavy loads
Motor power:
25.0 hp applicable standard load
20.0 hp suitable for heavy loads
Continuous output current:
39.2 A on... 4 kHz applicable standard load
31.7 A is suitable for overload at 4 kHz on
EMC filter:
Integrated
With EMC mounting plate option
IP protection level: IP21
Discrete input logic: 16 preset speeds
Asynchronous motor control configuration file:
Standard constant
Standard variable
Optimize mode
motor control configuration mode:
Permanent magnet motor
reluctance motor
Maximum output frequency: 599 Hz
Switching frequency:
2... 16 kHz adjustable
4... 16 kHz available
Rated switching frequency: 4 kHz
Line current:
33.4 A on... 380 V (standard load)
27.7 A on... 380 V (heavy load)
28.9 A on... 480 V (standard load)
24.4 A on... 480 V (heavy load)
Apparent power:
24 kVA on... 480 V (standard load)
20.3 kVA on... 480 V (heavy load)
Maximum transient current:
47 A at 60 s (standard load)
47.6 A at 60 s (overload)
Grid frequency: 50... 60 Hz
Expected line Isc: 50 kA
