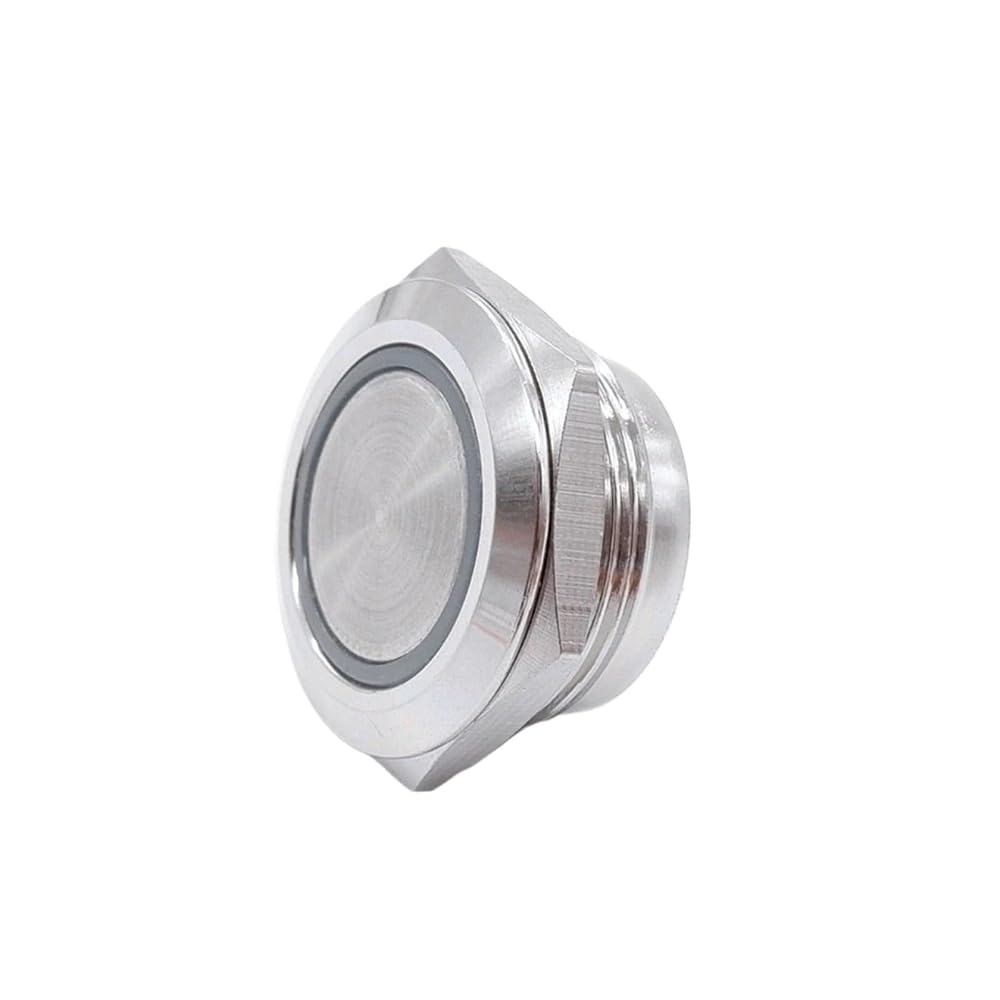

Metal Button Switch 16mm Short-Throw LED Light Round Momentary Self-Reset Power On Off 6V 12V 24V Red, 1PCS(Green Round,16MM_HIGH_3-6V) in Saudi Arabia

Blue round 16MM_FLAT_3-6V

SAR 101
Colorblue round
Size16MM_FLAT_3-6V
– 1 +

Special Features

  • 【Exquisite structural design】:Adopting a modular combination structure, such as some series of buttons equipped with single-chip snap on contact modules and light-emitting modules, not only is installation and maintenance convenient, but also ensures the reliability of the structure
  • 【Operational performance】:Some products activate upon pressing, reset upon release, and are used to connect and disconnect small current circuits. Some products have self-locking function, which can automatically maintain the closed position when pressed and only open after power failure. Can adapt to different operational needs in different scenarios, and provide clear feedback on pressing sensation
  • 【Reliable electrical function】:The contacts are made of standard silver or silver gold-plated materials, ensuring durability and good conductivity. The initial contact resistance is small, the insulation resistance is high, and the dielectric strength meets relevant standards. It can operate stably in various electrical environments
  • 【Clear color identification】:red indicates operation in "stop" or "dangerous" situations, green indicates "start" or "connect", making it easy for operators to quickly identify and operate
  • 【Widely used in various industries】:such as power, industrial automation, machinery, machine tools, textiles, ships, aviation, automobiles, medical equipment, office equipment, etc

Description

Metal Button Switch 16mm Short-Throw LED Light Round Momentary Self-Reset Power Button On Off 6V 12V 24V Red, 1PCS
Important Tips
1.The maximum voltage of this button is 24V, and the maximum current is 1A. If it exceeds 24V or 1A, the contacts will be damaged.
2.Momentary/Self-reset: When you press the button, press-key will automatically return.(Like a car horn switch.Press it-power on, release it-power off.)
Switch type:power switch button
Hole diameter:12mm/16mm/19mm/22mm
Led color:red/orange/green/blue/white
Top Material:Stainless steel
Shell material:Nickel plated copper
Shell color:silver
Switch contacts: high head/flat head
Operation method:Momentary self-reset
Led Voltage:3-6V/12-24V
Maximum current:1A
Contact type:1NO
Manual measurement, there may be a little error.The protruding part of the high button is about 2mm
Metal push button switch with rubber sealing ring, waterproof and dustproof
Micro-travel ultra-short push button switch, shorter and lighter than general push buttons, suitable for thinner installation panels.
Certificate authentication
Button Switch Tip
The lamp and switch have no electrode, no need to divide the positive and negative poles when wiring.
Wiring Diagram
1,The button turns the LED light on and off,the circuit is alway open unless press the button.
2,LED lights are always on,the circuit is alway open unless press the button.
High-concerned chemical : None
EU LVD Voltage : Low voltage: Below 50Vac or 75Vdc
Current : 1A
Material : Alloy
Switch Type : Push Button Switch
Warranty : metal button switch
Model Number : 12/16/19/22mm
Features : metal push button switch
Item Type : SWITCHES
Is Smart Device : No
Led color : red/orange/green/blue/white
Operation method : Momentary self-reset
Switch contacts : Flat head/High head
Led Voltage : 3-6V/12-24V
Maximum current : 1A
Shell color : Silver
Contact type : 1NO
