Push Button Switch 12mm Flat High Head Waterproof Ring Metal Car Power Momentary Latching 5V 24V, 1pcs(Orange,LAT_HIGH Head_12-24V) in Saudi Arabia

Green MOM_FLAT HEAD_220V

SAR 105
ColorGreen
SizeMOM_FLAT HEAD_220V
– 1 +

Special Features

  • 【Exquisite structural design】:Adopting a modular combination structure, such as some series of buttons equipped with single-chip snap on contact modules and light-emitting modules, not only is installation and maintenance convenient, but also ensures the reliability of the structure
  • 【Operational performance】:Some products activate upon pressing, reset upon release, and are used to connect and disconnect small current circuits. Some products have self-locking function, which can automatically maintain the closed position when pressed and only open after power failure. Can adapt to different operational needs in different scenarios, and provide clear feedback on pressing sensation
  • 【Reliable electrical function】:The contacts are made of standard silver or silver gold-plated materials, ensuring durability and good conductivity. The initial contact resistance is small, the insulation resistance is high, and the dielectric strength meets relevant standards. It can operate stably in various electrical environments
  • 【Clear color identification】:red indicates operation in "stop" or "dangerous" situations, green indicates "start" or "connect", making it easy for operators to quickly identify and operate
  • 【Widely used in various industries】:such as power, industrial automation, machinery, machine tools, textiles, ships, aviation, automobiles, medical equipment, office equipment, etc

Description

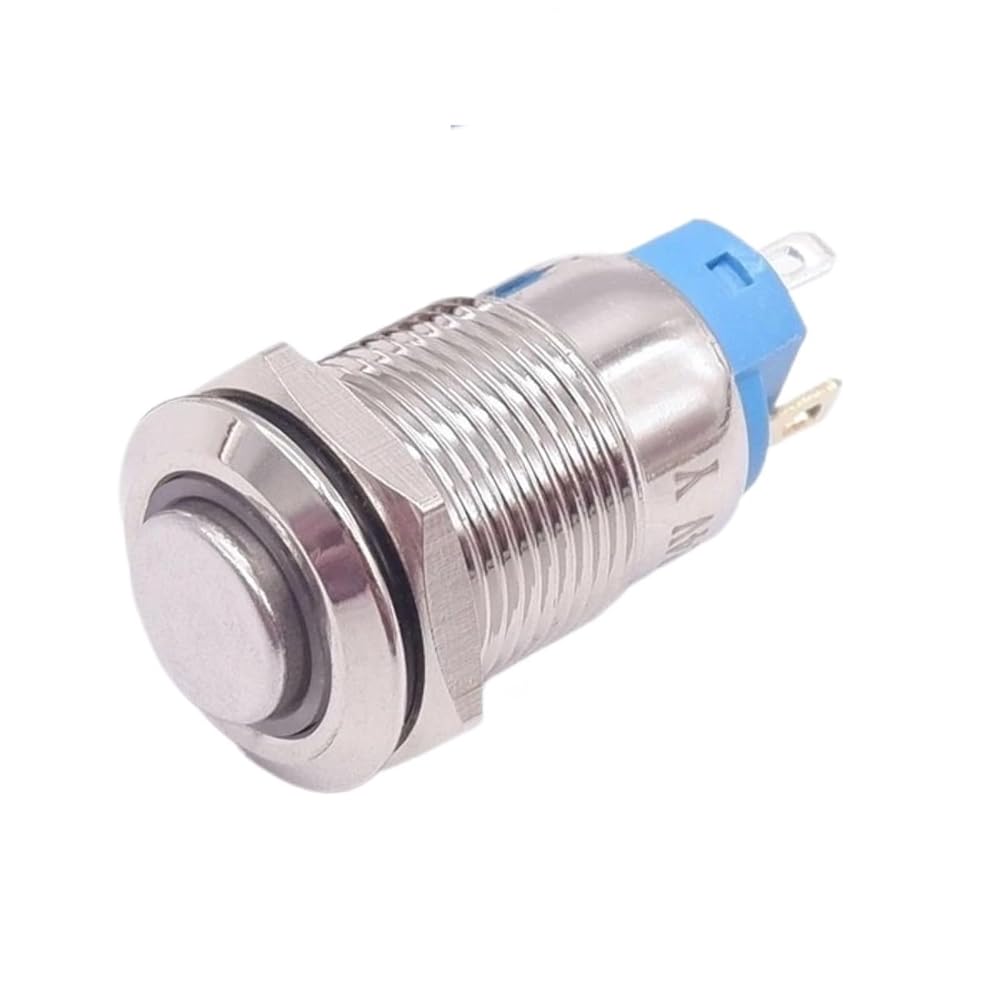

Push Button Switch 12mm Flat High Head Waterproof Ring Metal Car Power Switch Momentary Latching 5V 24V, 1pcs
Hole diameter:12mm
Led color:red/orange/green/blue/white
Shell color:silver
Operation method:Momentary self-reset/Latching self-locking
Led Voltage:3-6V/12-24V/110-220V
Maximum current:3A
Contact type:1NO1NC
The protruding part of the high button is about 2mm
Manual measurement, there may be a little error
Metal push button switch with rubber sealing ring, waterproof and dustproof
Difference between Momentary self-reset and Latching self-locking:
1.Momentary/Self-reset: When you press the button, press-key will automatically return.(Like a car horn switch.Press it-power on, release it-power off.)
2.Fixed/Self-locking: When you press the button, press-key will stay in position until you press again.And then the press-key return.(Like a light switch.Press it-power on, press it again-power off.)
Certificate authentication
Button Switch Tip
The lamp and switch have no electrode, no need to divide the positive and negative poles when wiring.
Wiring Diagram(12mm)
1,The button turns the LED light on and off,the circuit is alway open unless press the button.
2,LED lights are always on,the circuit is alway open unless press the button.
High-concerned chemical : None
EU LVD Voltage : Low voltage: Below 50Vac or 75Vdc
Current : 3A
Material : Alloy
Switch Type : Push Button Switch
Warranty : metal button switch
Model Number : 12mm
Features : metal push button switch
Item Type : SWITCHES
Is Smart Device : No
Led color : red/orange/green/blue/white
Operation method : Momentary self-reset/Latching self-locking
Led Voltage : 3-6V/12-24V/110-220V
Maximum current : 3A
Shell color : silver
Contact type : 1NO1NC
