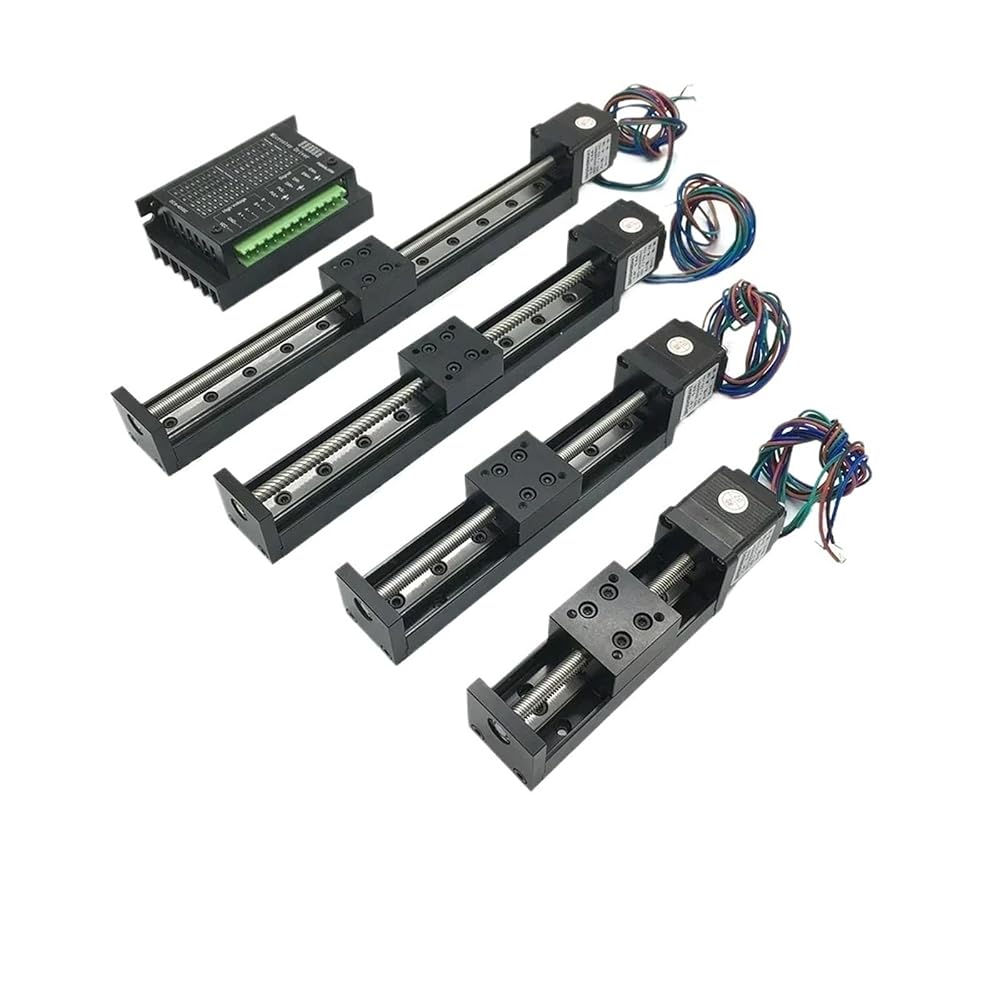

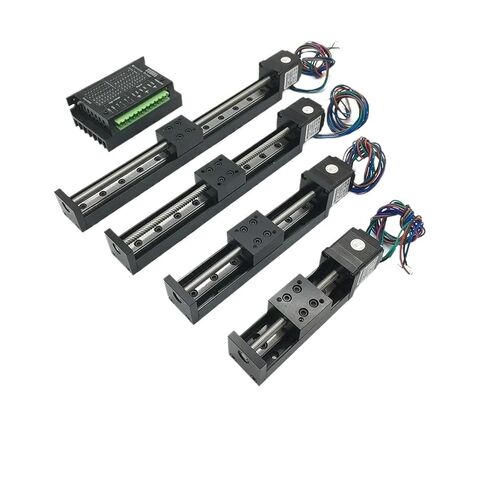

Linear Motion Guide Actuators
Model Number : T06
Guide Width or Diameter : 6mm
Product keyword : Electric Sliding Table
Slide type : Trapezoidal lead screw sliding table
Motor type : Nema11 2PH Open-loop Stepper Motor
Horizontal load : 5KG (Max)
Vertical load : 2.5KG (Max)
Motor Holding torque : 0.07N.m
Effective stroke : 50mm-300mm
Mobile panel size : 30mm*32mm
Repeat positioning accuracy : 0.02mm-0.03mm
Base plate material : Aluminum profile
Rail material : Bearing steel
Maximum speed : 80mm/s
Screw Precision : C7
Current : 0.6A
Step angle : 1.8degree
Drive Input voltage : DC 9-42V
