Linear Motion Guide Actuators
Model Number : T06
Guide Width or Diameter : 12mm
Screw Model : Trapezoidal screw (T6)
Horizontal load : 5KG (Max)
Vertical load : 2.5KG(Max)
Screw Pitch : 1mm/2mm/4mm/6mm/12mm
Motor Size : NEMA11(28MM)
Holding torque : 6.5Ncm/0.065N.m
Mobile panel size : 30mm X 32mm
Repeat positioning accuracy : 0.02mm-0.03mm
Maximum speed : 80mm/s
Rail width : 9MM
Block : MGN9H
Stroke : 50mm/100mm/150mm/200mm/250mm/300mm
CNC Manual Sliding Table 100-500mm Effective Stroke Linear Guide Stage Module with Digital Display Position Counter 1605/1610(Sfu1605 Horizontal,100mm Stroke)
SAR 5,387

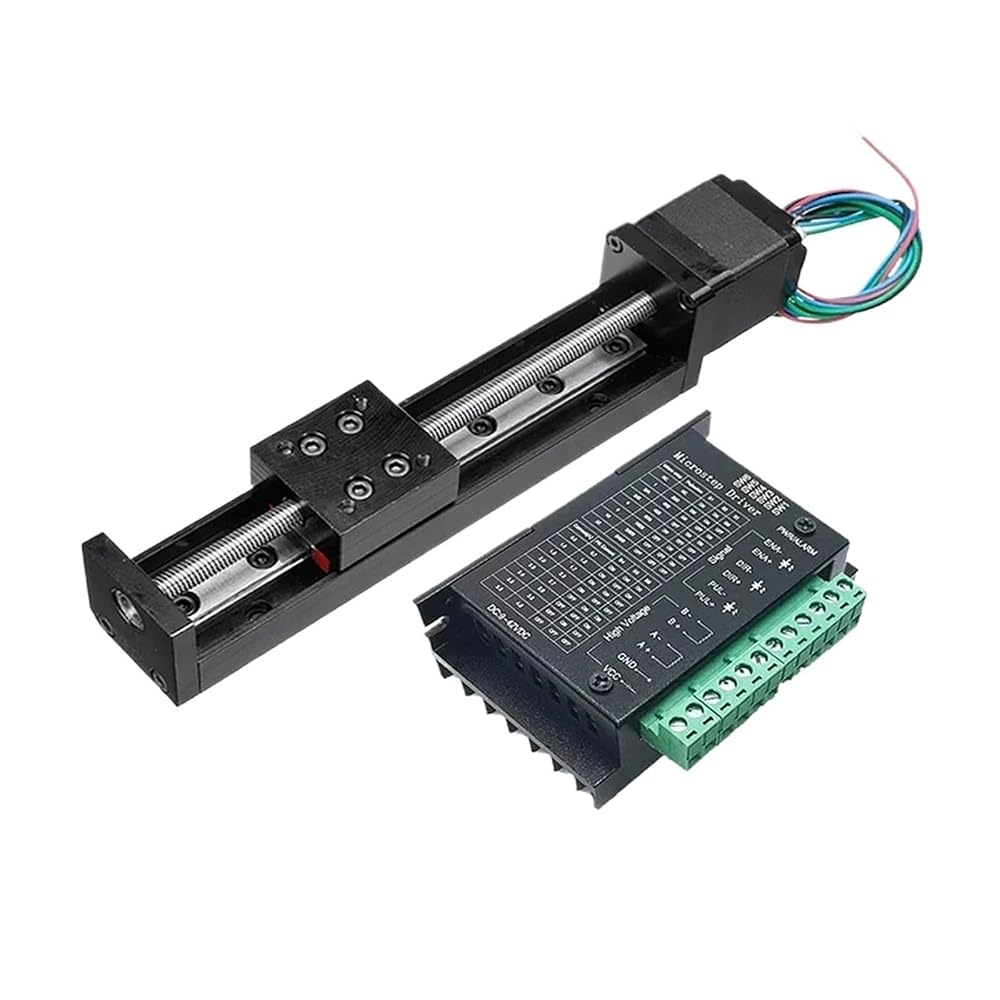

T-Type Sliding Table Rail Linear 50-300mm Stroke NEMA11 Stepper Motor Driver TB6600 Kit CNC Guide Axis(150mm with Driver,6mm Pitch)
SAR 1,912
Mini Sliding Table Nema11 28mm Trapezoidal Lead Screw Automatic Locking Motor Kit XY/Axis Gantry Linear Rail Guide Stage(Z Axis 150mm Stroke,XY 150mm-2 Pitch)
SAR 5,843
Mini Sliding Table Nema11 28mm Trapezoidal Lead Screw Automatic Locking Motor Kit XY/Axis Gantry Linear Rail Guide Stage(Y Axis 150mm Stroke,XY 250mm-4 Pitch)
SAR 4,827
