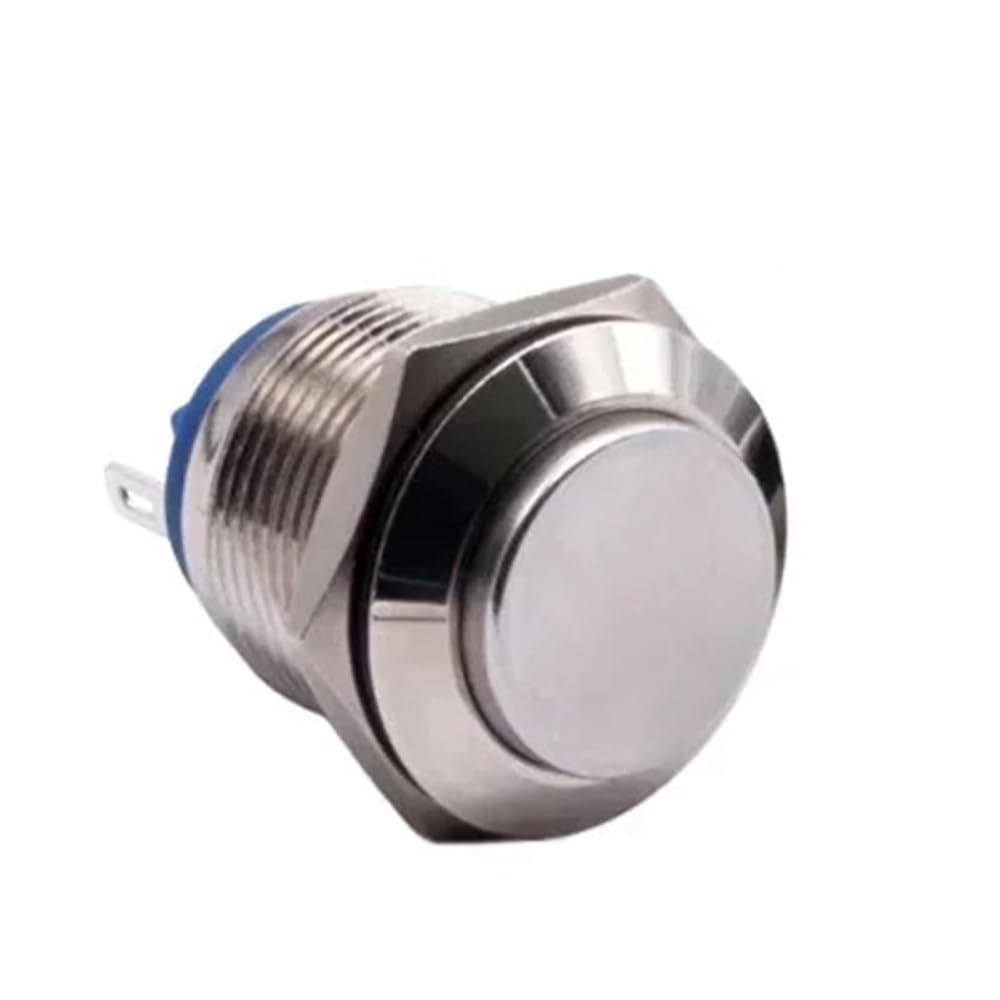

Push Button Switch 19mm Stainless Steel 2 Pin 1NO ON Off Momentary High Flat Round Head Screw Terminal Switch, 1pcs(High Head Screw Pin) in Saudi Arabia

Round Head Screw Pin NP Brass

SAR 92
ColorRound Head Screw Pin
SizeNP Brass
– 1 +

Special Features

  • 【Exquisite structural design】:Adopting a modular combination structure, such as some series of buttons equipped with single-chip snap on contact modules and light-emitting modules, not only is installation and maintenance convenient, but also ensures the reliability of the structure
  • 【Operational performance】:Some products activate upon pressing, reset upon release, and are used to connect and disconnect small current circuits. Some products have self-locking function, which can automatically maintain the closed position when pressed and only open after power failure. Can adapt to different operational needs in different scenarios, and provide clear feedback on pressing sensation
  • 【Reliable electrical function】:The contacts are made of standard silver or silver gold-plated materials, ensuring durability and good conductivity. The initial contact resistance is small, the insulation resistance is high, and the dielectric strength meets relevant standards. It can operate stably in various electrical environments
  • 【Clear color identification】:red indicates operation in "stop" or "dangerous" situations, green indicates "start" or "connect", making it easy for operators to quickly identify and operate
  • 【Widely used in various industries】:such as power, industrial automation, machinery, machine tools, textiles, ships, aviation, automobiles, medical equipment, office equipment, etc

Description

Push button switch 19mm Stainless Steel 2 Pin 1NO ON OFF Momentary High Flat Round Head Screw Terminal Switch, 1pcs
Specification:
Mounting Hole Diameter: 19mm
Material: Stainless Steel/ Nickel plated brass
Head Type: Flat Head/ Round Head/ High Head
Connecting Ways: Screw terminals / Solder pins
Rating: 3A/250V
Switch Combination: 1NO
Switch Function: Momentary ( Push Button, switch work; Release, switch off)
High-concerned chemical : None
EU LVD Voltage : Low voltage: Below 50Vac or 75Vdc
Current : 3A
Material : Stainless steel
Switch Type : Push Button Switch
Features : Waterproof
Mounting hole : 19mm
Rating : 3A/250VAC
Contact Configuration : 1 NO
Head Type : Flat Head/ High Head/ Flat Head power symbol
Material : Nickel Plated Brass/ Stainless steel/Zin alloy Aluminum(black)
Function : Momentary
