Thermal Printer Head Replacement MTP201-24B-E MTP201-24B MTP201 58MM Compatible with Thermal Printers in Saudi Arabia Thermal Printer Head Replacement MTP201-24B-E MTP201-24B MTP201 58MM Compatible with Thermal Printers in Saudi Arabia Thermal Printer Head Replacement MTP201-24B-E MTP201-24B MTP201 58MM Compatible with Thermal Printers in Saudi Arabia Thermal Printer Head Replacement MTP201-24B-E MTP201-24B MTP201 58MM Compatible with Thermal Printers in Saudi Arabia

Thermal Printer Head Replacement MTP201-24B-E MTP201-24B MTP201 58MM Compatible with Thermal Printers

SAR 1,495
Brand
SSytPbAme
Weight
110 g
– 1 +

Special Features

  • Model Compatibility: Replacement printhead designed for devices using the MTP201-24B-E or MTP201-24B thermal printer head specification.
  • Technical Specification: Matches the MTP201 series 58MM width thermal printhead configuration and electrical interface.
  • Component Type: Thermal printer head assembly intended as a direct functional replacement for the MTP201-24B-E and MTP201-24B models.
  • Installation Note: Installs in place of the existing MTP201-24B-E or MTP201-24B thermal printhead without modification to the host device.
  • Functional Purpose: Restores thermal printing capability in originally equipped with the MTP201, MTP201-24B, or MTP201-24B-E printhead.

Description

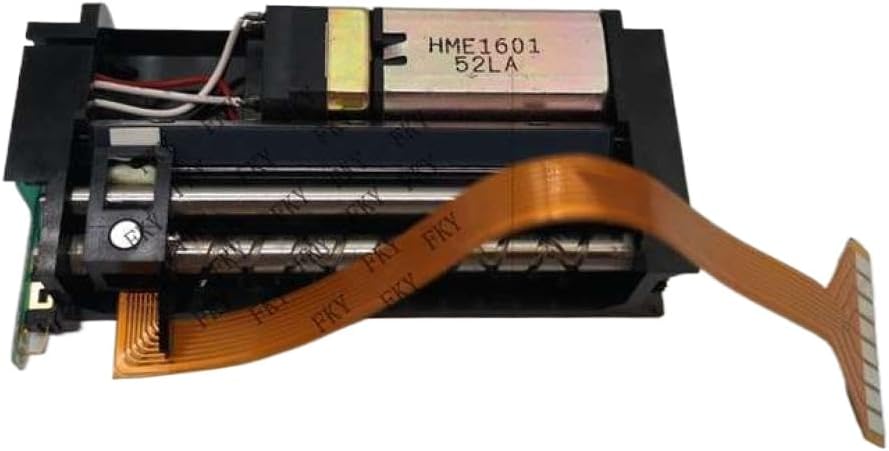

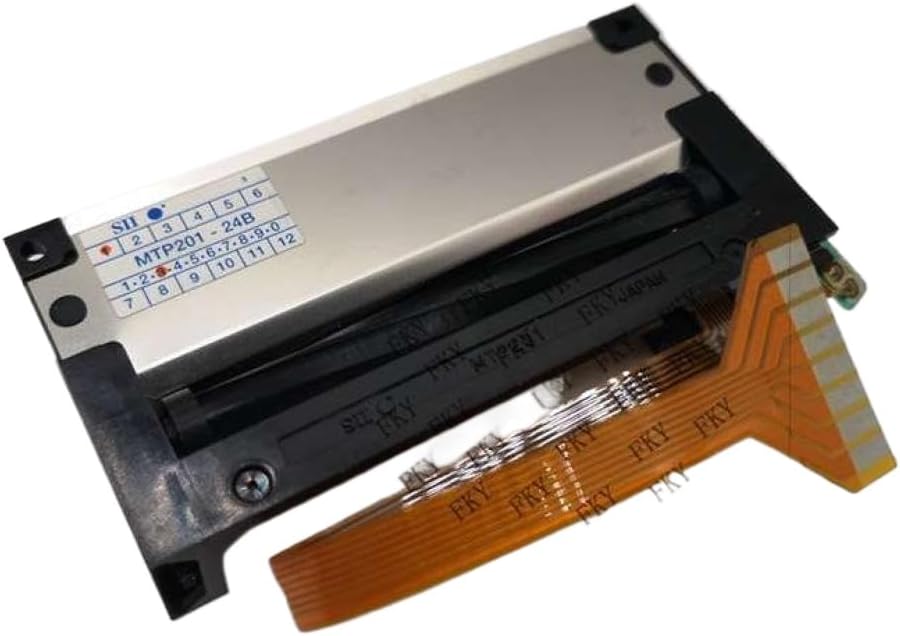

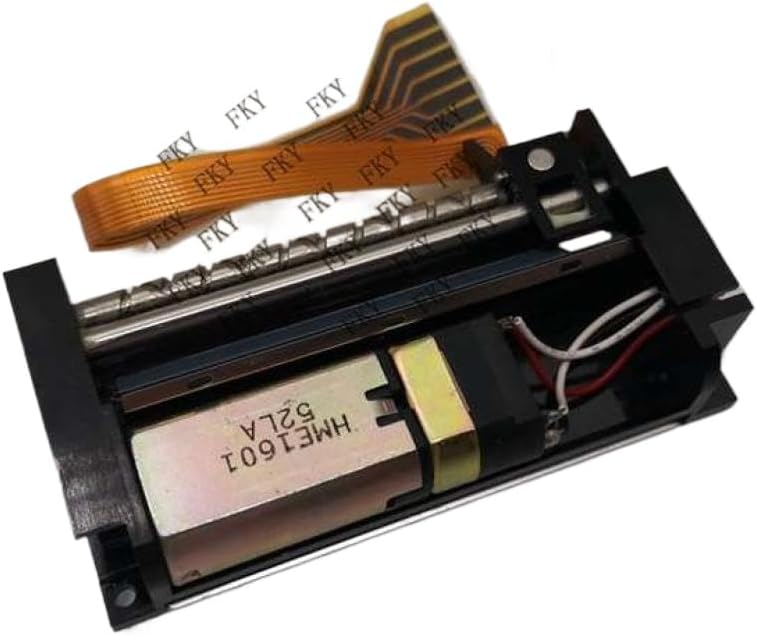

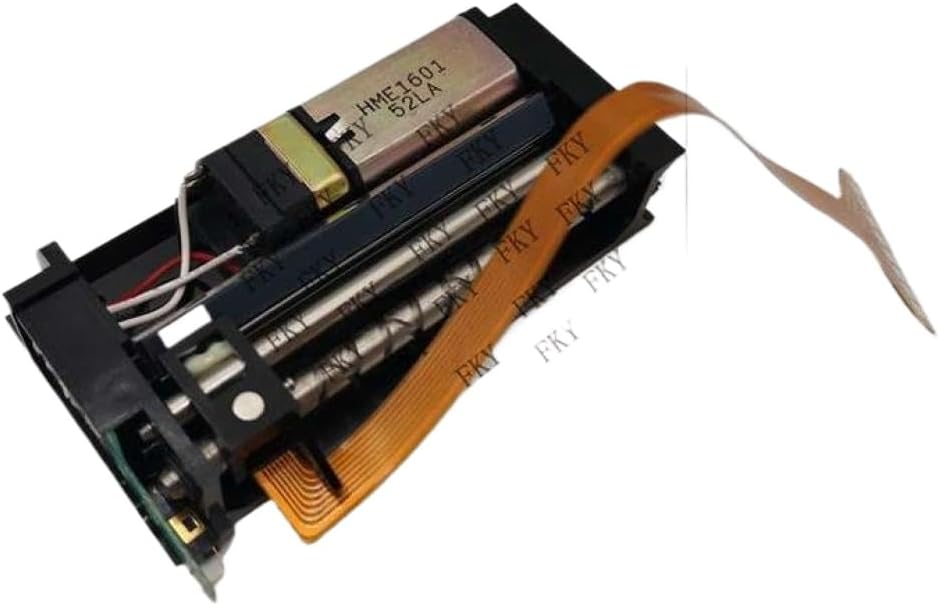

MTP201-24B-E thermal printer head printhead. Compatible with MTP201 series printers. Designed for 58 mm paper width. Printing width: 45.9 mm. Character matrix: 7×5 dots. Character size: 2.4×1.6 mm. Number of columns: 20. Line spacing: 2.8 mm. Maximum printing speed: 1.0 line/sec. Paper path: curved. Home position detection via mechanical switch. Power supply: 4.0–6.0 V DC. Peak current: 3.2 A at 5.0 V. Service life: 500,000 lines. Operating temperature: 0 to 50 °C. Dimensions: 70.0×34.0×14.4 mm. Mass: approximately 40 g. Loading type: MTP201-24B. This replacement part is independently produced. All brand references are for compatibility demonstration only.
