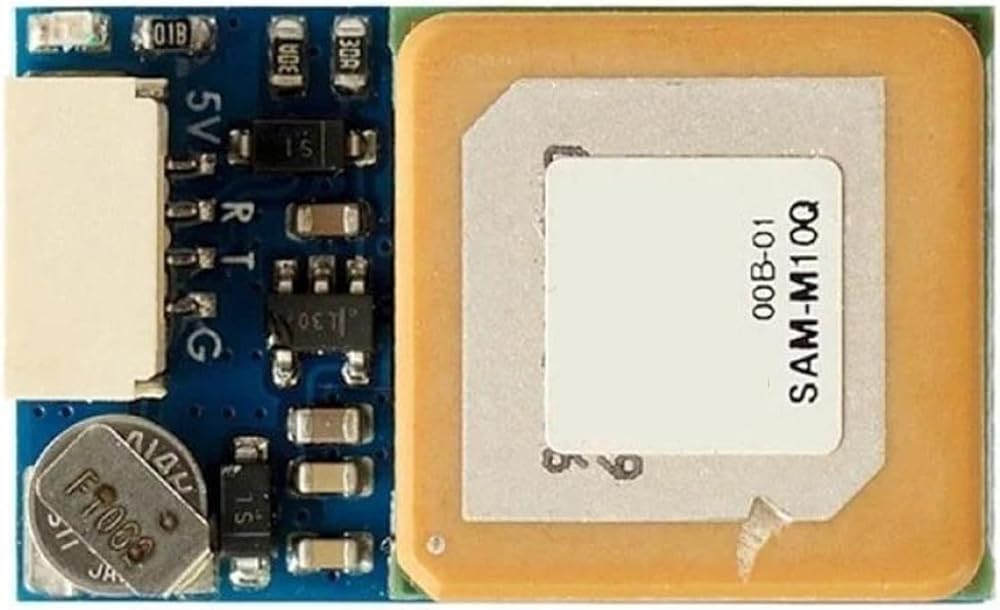

Item: GNSS, SAM-M10Q
Specifications:
GNSS compatible with SAM-M10Q-00B (GPS, GLONASS, Galileo, BeiDou)
No / compass
Patch size: 15mm x 15mm x 4mm
Input voltage range: 4V-9V (5V pad/pin)
Power consumption: 10mA
UART baud rate: 9600 (default)
Operating temperature: -20°C to 80°C
Compatible with UART (TX) interface compatible with GNSS SAM-M10Q-00B
Compatible with JST-GH-4P connector (SM04B-GHS-TB), 1.27mm pitch
GNSS PPS: green LED (solid ON after powering on, blinking at 1Hz when GNSS gets a 3D fix)
Protocol: compatible with 5Hz@GPS+GAL+BDS B1C+GLO or NMEA 1Hz
Dimensions: 26mm x 16mm x 8mm
Weight: 7.5g
Includes:
1x SAM-M10Q
1x JST-GH-4P to JST-GH-4P 20cm silicon wire
Wiring and settings:
Connect SAM-M10Q 5V to Flight controller (4V-9V)
Connect SAM-M10Q to Flight controller UART_TX
Connect SAM-M10Q TX to Flight controller UART_RX
Connect SAM-M10Q GND to Flight controller GND
Item: M10Q-5883
Specifications:
GNSS compatible with SAM-M10Q (GPS, GLONASS, Galileo, BeiDou)
/ compass QMC5883L
Patch size: 15mm x 15mm x 4mm
Input voltage range: 4V-9V (5V pad/pin)
Power consumption: 13mA
UART baud rate: 9600 (default)
Operating temperature: -20°C to 80°C
Compatible with UART (TX) interface compatible with GNSS SAM-M10Q-00B
I2C (DA, CL) interface compatible with compass QMC5883L
Compatible with JST-GH-6P connector (SM06B-GHS-TB), 1.27mm pitch
GNSS PPS: green LED (solid ON after powering on, blinking at 1Hz when GNSS gets a 3D fix)
Protocol: compatible with 5Hz@GPS+GAL+BDS B1C+GLO or NMEA 1Hz
Dimensions: 20mm x 20mm x 12.4mm
Weight: 8g
Includes:
1x M10Q-5883
1x JST-GH-6P to JST-GH-6P 20cm silicon wire
Wiring and settings:
Connect M10Q-5883 5V to Flight controller (4V-9V)
Connect M10Q-5883 to Flight controller UART_TX
Connect M10Q-5883 TX to Flight controller UART_RX
Connect M10Q-5883 CL to Flight controller I2C_SCL
Connect M10Q-5883 DA to Flight controller I2C_SDA
Connect M10Q-5883 GND to Flight controller GND
