DC Current Measuring Shunt Resistor, DC Current Shunt Resistor FL-2 50A 100A 75mV for Ammeter Voltmeter(100a 75mv)

SAR 193
Brand
YYFQFJOL
Color
– 1 +

Special Features

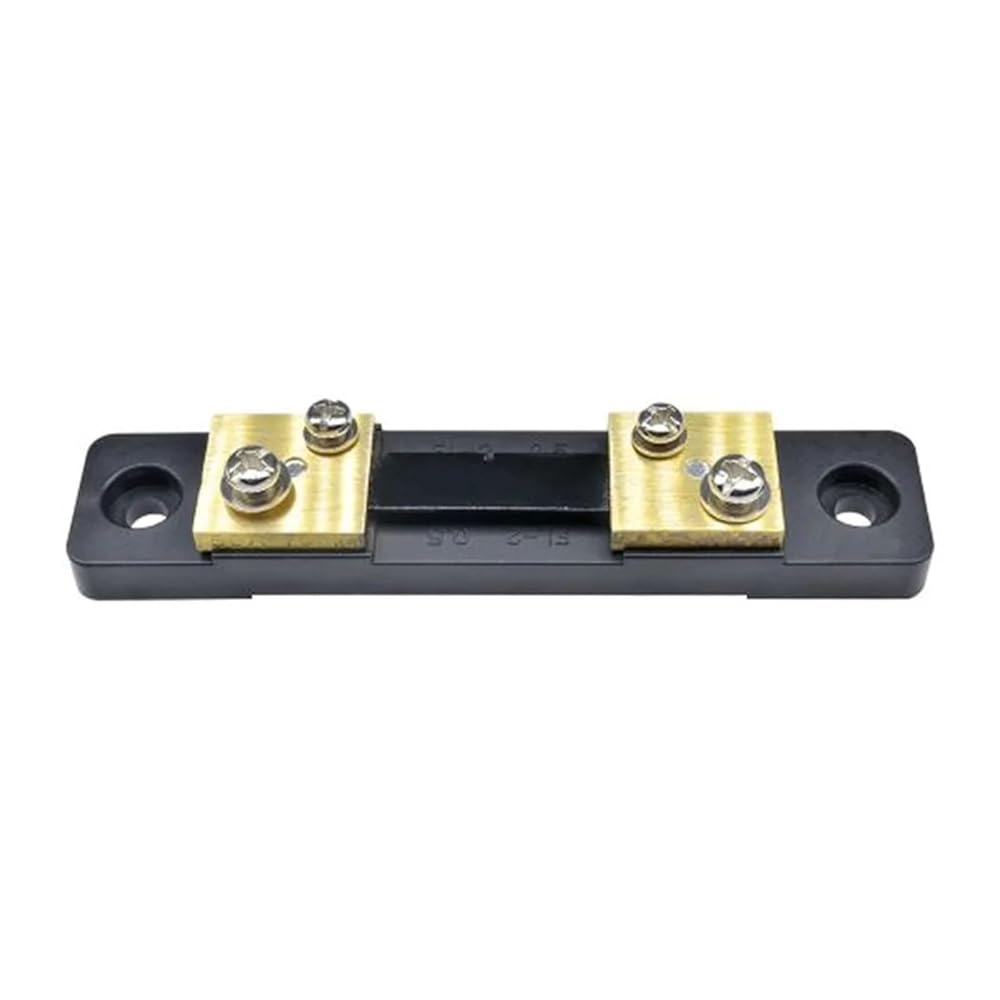

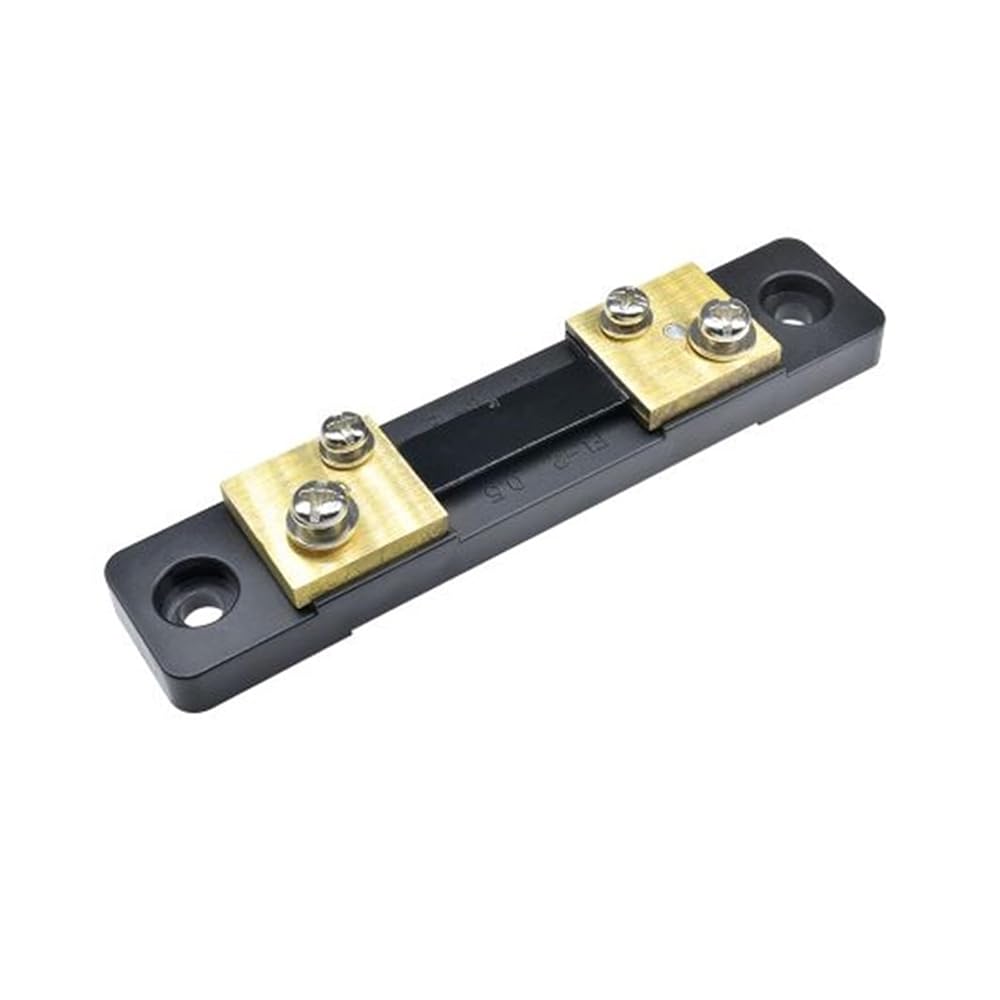

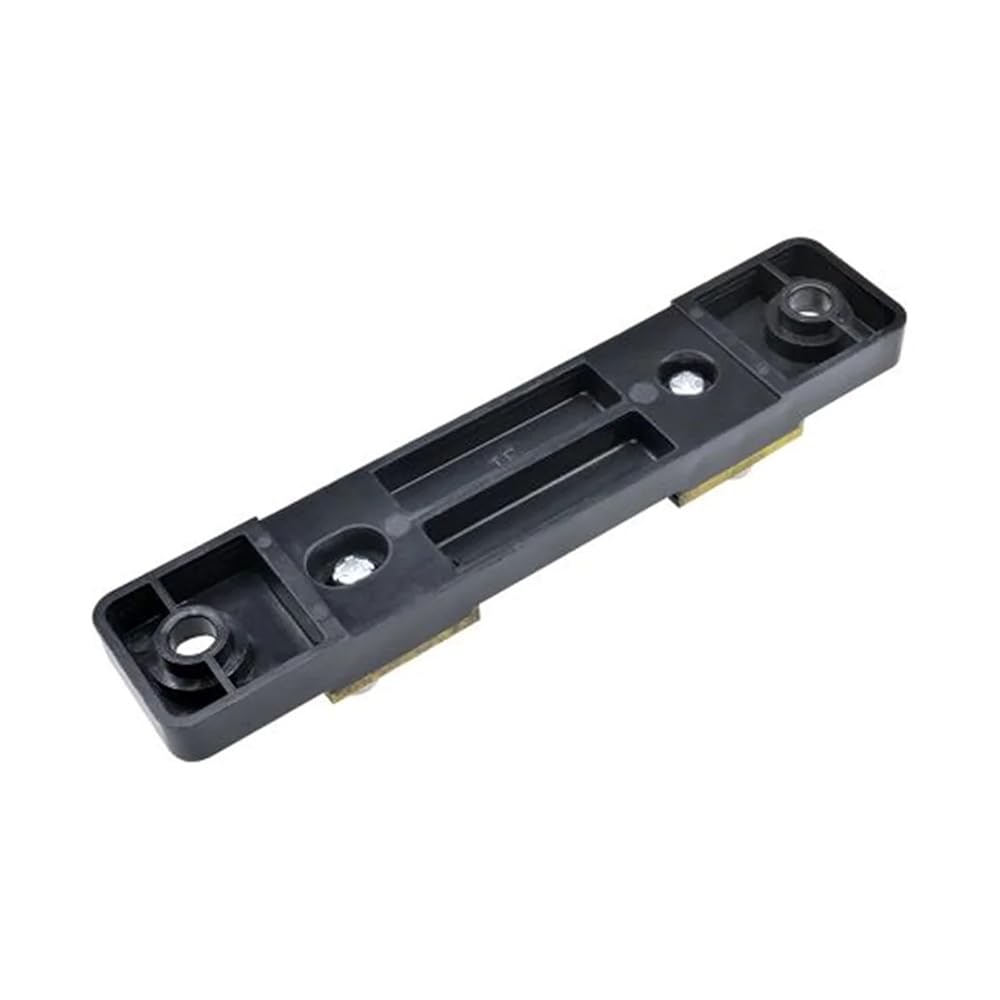

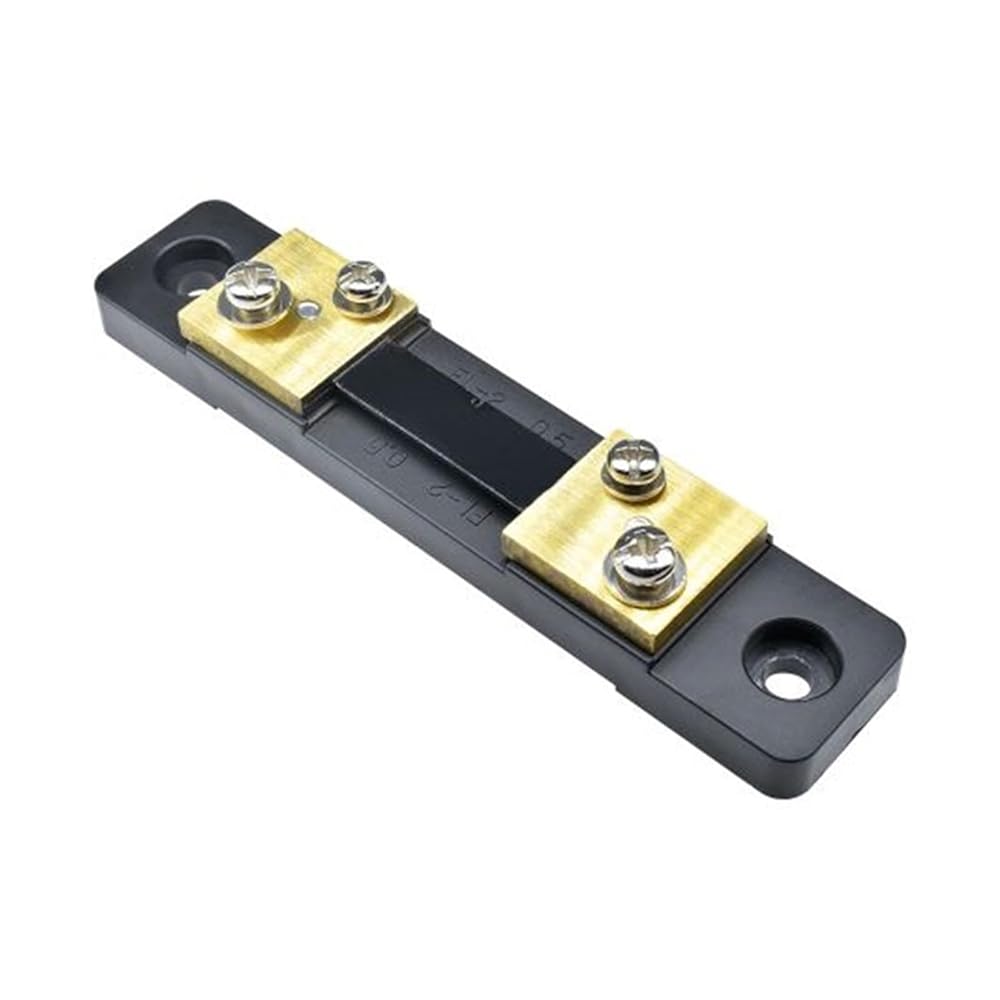

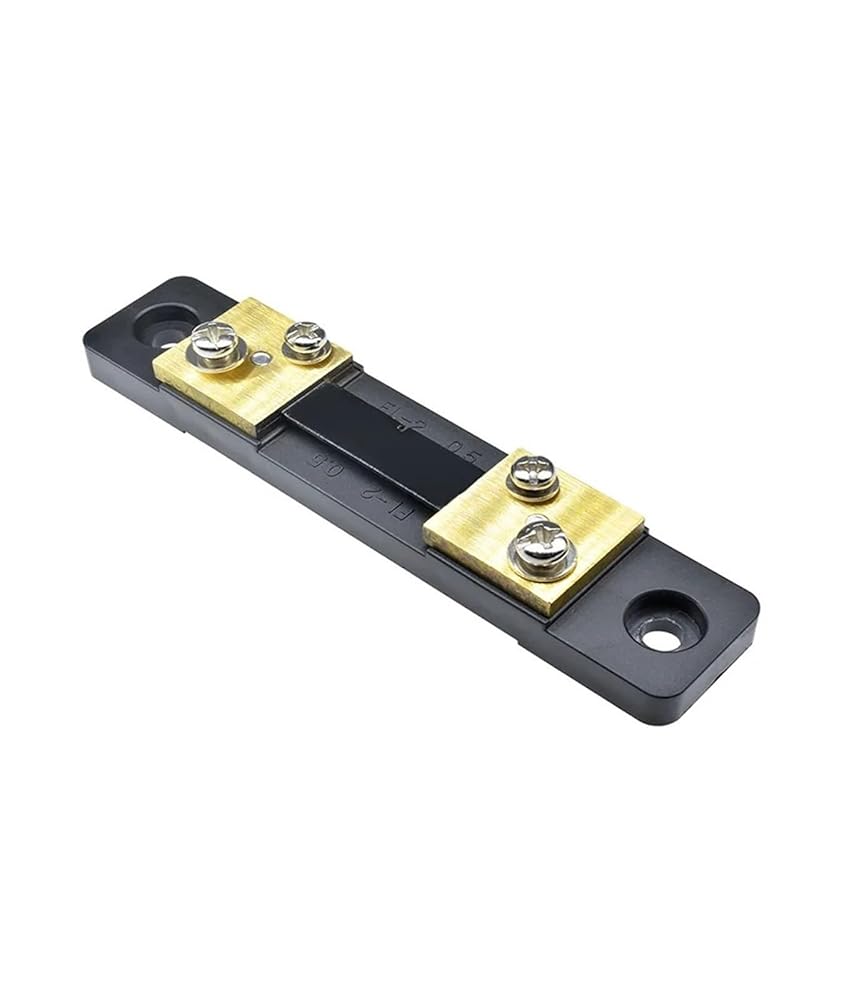

  • Product Features: The DC shunt resistor features two holes on either side for secure mounting, with nuts provided for circuit connection.
  • Product Material: Current shunt resistors are manufactured from rust-proof plated copper, ensuring stable performance and durability.
  • User-Friendly Operation: This ammeter utilises a shunt resistor, offering compact dimensions and straightforward operation. It is rated for currents exceeding 50A and operates at temperatures not exceeding 120°C.

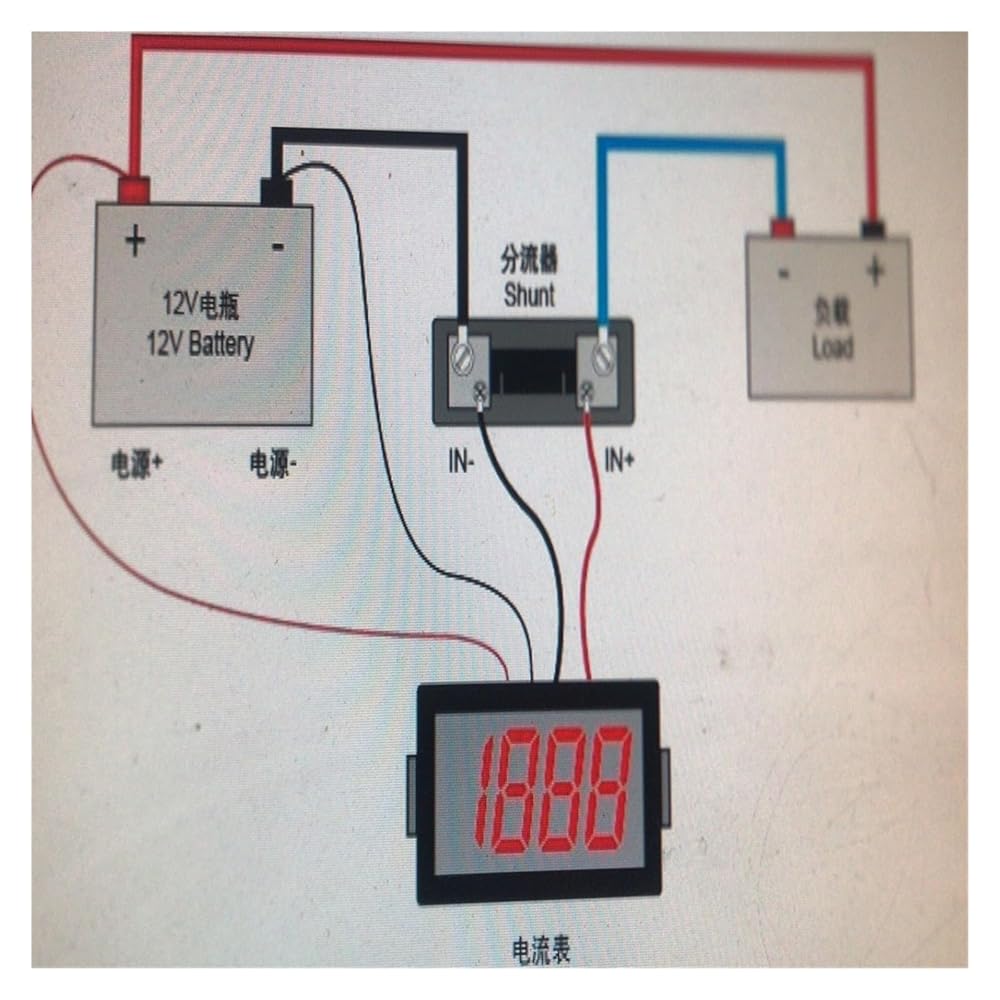

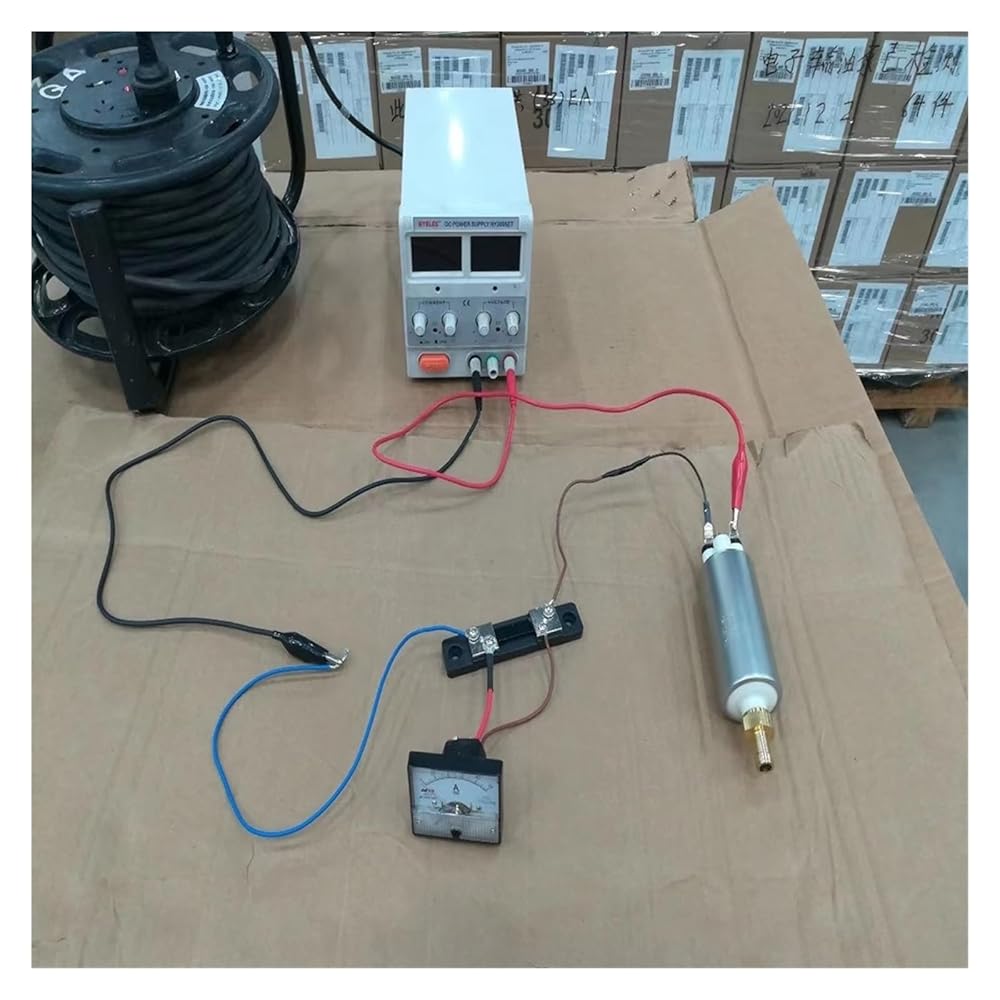

  • Product Connection: The shunt must be connected in parallel with an ammeter (moving-coil ammeter) to bypass current. Typically, the two external terminals connect directly to the power circuit, while the two internal terminals connect in series with the ammeter.
  • This product protects the ammeter and assists the ammeter in measuring very large currents.

Description

Good Performance and easy installation
A 'must have' component for DC current meter
It could be used either in a digital or an analog meter
The shunt is used to multiply the measuring range of current of measuring
It can be used to connect to a 50Amps/100Amps ect DC current meter
Specifications:
Current: 10A/20A/30A/50A/100A
Voltage Drop: 75mV
al Condition : -40~+60c
Relative Humidity: 95%(35c)
Shock Endurance: 80-120 times/mins
Overreacting Capacity: 120% (of rate current)
Size (L*W*H):12 x 2.5 x 1.8cm/4.72"x0.98"x0.70"(approx)
Model Number : shunt
DIY Supplies : Electrical
Origin : China
Name : shunt
